Where Quiet
Begins.
Two configurations. One standard of silence. The Hushbox collection offers an actively vented system for the highest-demand installations and a self-contained unit for plug-and-play deployments — both built to order, both acoustically measured before they ship.
Engineered for absolute silence.
Actively Vented — JVC100MMHBMK1
The Ultimate Hush Box
Actively cooled and exhausted via 4" flexible ducts routed outside the room. A variable speed inline fan with duct silencers and a Smart Wi-Fi temperature controller deliver complete thermal and acoustic control — run your projector in high lamp or laser mode with zero heat or noise interference.
- 4" duct exhaust routed outside the room
- Smart Wi-Fi temperature controller (AC Infinity 69 Pro)
- Up to 7.4 dBA noise reduction — Dynamat Dynacore equipped
Plug & Play — JVC100MMHBSC1
Self-Contained Hush Box
Fully self-contained with built-in active cooling. Two internally mounted 120mm blowers push air through exhaust chambers while a rear-mounted smart temperature controller keeps everything in check. True plug-and-play — no duct routing required.
- Plug & play — no external duct routing required
- Rear-mounted smart temperature controller
- Up to 6.4 dBA noise reduction — Dynamat Dynacore equipped
Custom builds available — contact us to discuss your specific requirements.
Explore the craft.
Every surface, joint, and ventilation channel — rendered in full detail. Rotate freely to examine the construction from any angle.
Built where precision
meets craft.
Every hush box is built from premium materials, acoustically measured, and thermally validated before it ships. No guesswork — only verified results backed by a two-year warranty against defects.
Acoustic Engineering
Dynamat Dynacore acoustic lining throughout, combined with Dynamat Dynapad anti-vibration decoupling. Measured 7.4 dBA of projector noise reduction — calculated from real SPL readings with room floor noise removed.
Thermal Management
Active cooling via AC Infinity fans and duct silencers, controlled by a Smart Wi-Fi temperature controller. Run your projector at full lamp or laser power indefinitely without thermal throttling or heat buildup.
Material Quality

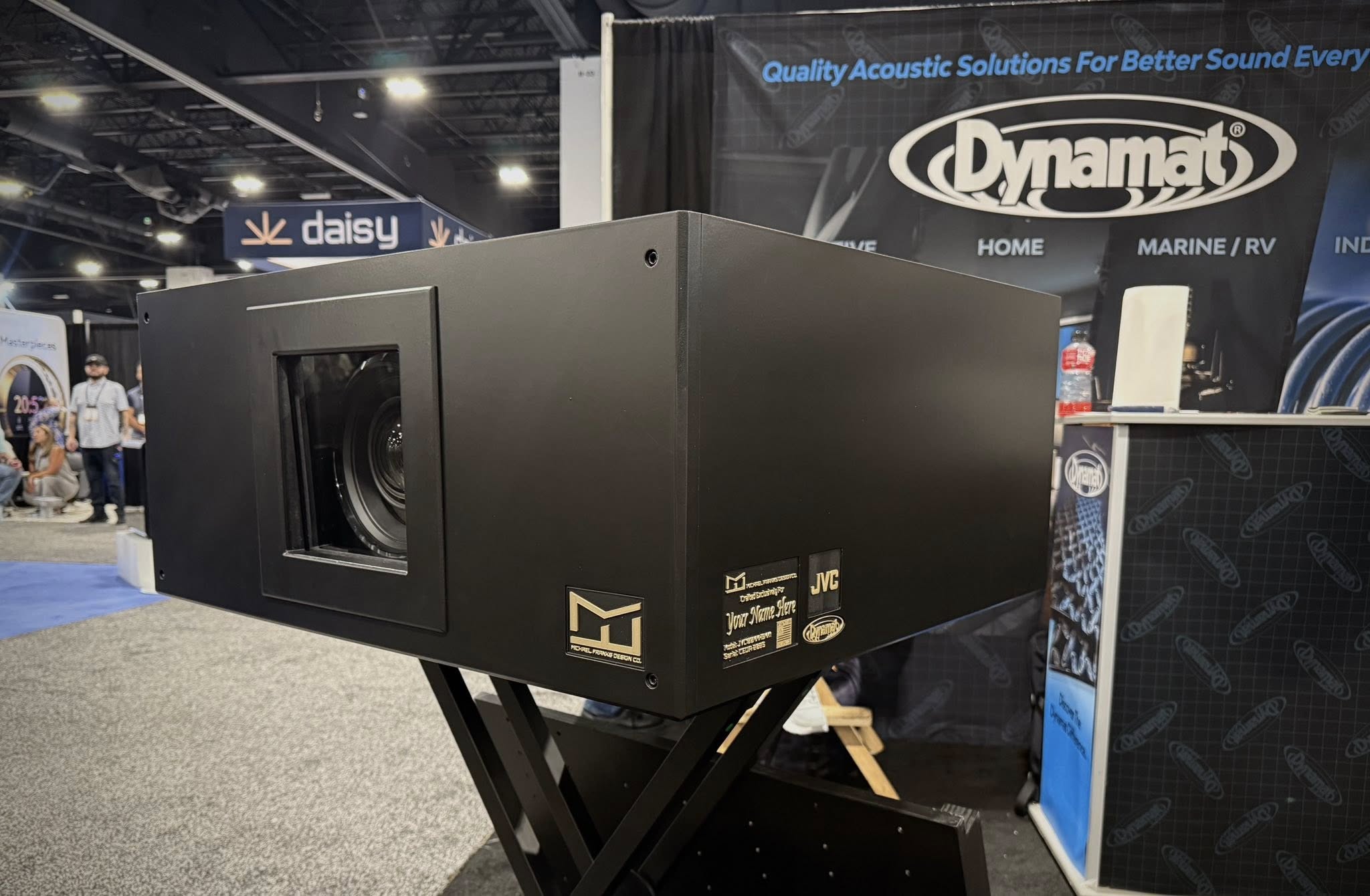

¾" Black Diamond MDF box construction on a ¾" Birch Plywood ceiling mount. Finished in Sherwin Williams Cabinet Enamel. Optional 6061 Billet Aluminum Panamorph lens mount and 6mm OptiClear port glass available.
Precision Mounting
Pre-drilled ceiling plate fits 16" or 24" on-center joists. The hush box sits on a 3-axis leveling bed — pitch, roll, and yaw — adjusted via four hex set screws on the underside for exact projector alignment.
Every hush box from Michael Franks Design Co. is backed by a two-year warranty against defects in materials and workmanship.
